Ultra-Modular IBC Spillpallet - 3
Spillpallet - 3 Tank
Regulations with Low Cost Spill Containment for Multiple IBC
NEW Ultra-Modular IBC SpillPallets
provide low cost spill containment for multiple IBC tanks. Standard offerings
include: 2-tank, 3-tank, 4-tank and 5-tank indoor and outdoor models. In addition,
components may be purchased separately to allow users to "build-your-own"
configurations for indoor models. Each IBC tank sits on a heavy-duty spill pallet
that offers a Uniformly Distributed Load Capacity of 9,000 lbs. Each of the low
profile spill pallets has a containment capacity of 75-gallons and measures 62" x
62" x 8.75”H. To increase containment capacity, a 65-gallon capacity Expansion Tank
is available. "Flow-through" bulkhead fittings (1.25-inch diameter) are used to
connect spill pallets and Expansion Tanks together. This patented feature allows
spills to be channeled throughout the containment system, thereby "borrowing"
containment capacity from adjacent spill pallets and Expansion Tanks. Any number of
the modular spill pallets can be connected together with the bulkhead fittings. Two
(2) bulkhead fittings are used to connect one pallet to the
Part #: 1126 - 3 Tank Model
Dimensions: 248" x 62" x
Weight Capacity: 9,000 lbs. UDL per pallet
Gallon Capacity: 355 gal.
Weight: 435 lbs.
Components Included: Pallets (3), Exp. Tanks (2)
Assembly Kit - Part #:
(includes hole saw, arbor and set
of 2 tightening tools - REQUIRED)
SpillPallet Only - Part #:
Dimensions: 62" x 62" x 8
Weight Capacity: 9,000 lbs. UDL
Gallon Capacity: 75 gal.
Weight: 125 lbs.

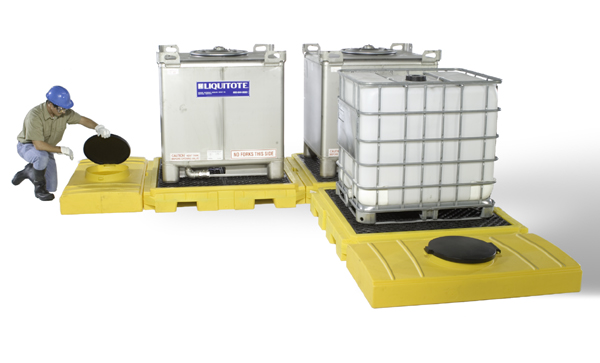

Note: picture is of 3-Tank
Model, 355 gal. capacity (shown in 'L' shaped configuration)
