System 800 Wide Span
Shelving
|
Extremely
versatile wide span shelving system, ideal for heavy hand loaded
material.
|
-
The widespan shelving system can be
erected in minutes without tools, hardware, or the need of skilled
help.
-
The Widespan shelving system is a
versatile and flexible storage system that can solve practically any
medium to heavy load storage problem.
-
All steel parts are phosphate undercoated
prior to having a powder epoxy finish.
-
Standard colour is light
grey.
-
Economical cut to size wood decking can
be used for shelf levels, or galvanized steel pans
|

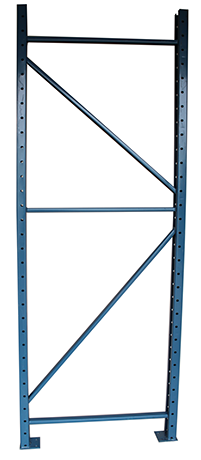

- Frames:One piece welded frame
design. 14Ga. Steel roll formed posts. 14Ga. Seamlessly welded tube
bracing.
-
Beams:
Seamlessly welded steel beams for extra
strength. 2 Rivets on each end plate for easy
installation.Built-in
self-locking mangalloy safety pins.
-

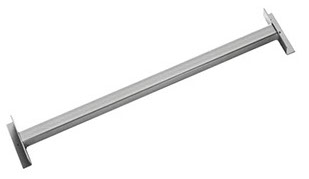

Supports:
Provides extra support for wood shelves.
Recommened for 30" and 36" depths.
-

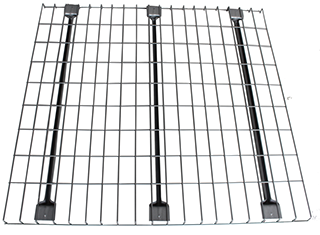

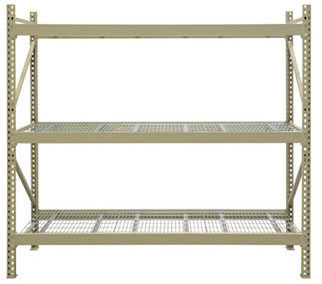

Wire
Decks:Galvanized
in-step steel wire decks. 7Ga. steel wire. 14Ga. steel support
channels. Specially designed to fit perfectly in System 800 Wide
Span Shelving.
-

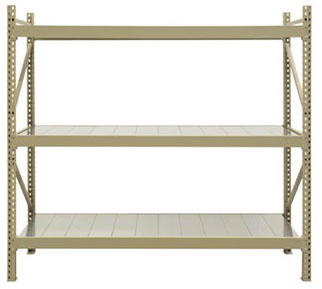

Steel
Pannels:Galvanized Drop-In steel panels
are 17Ga.
Steel. Specially
designed to fit perfectly in System 800 Wide Span
Shelving.
-

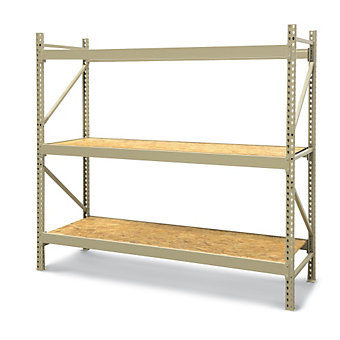

Wood
Decks:
Canadain made Oriented Strand Board
(OSB). Economically priced alternative to all metal
shelves.
|
Frame Part
#
|
Depth
|
Height
|
801
1872
|
18"
|
72"
|
801
1896
|
18"
|
96"
|
801
18120
|
18"
|
120"
|
801
2472
|
24"
|
72"
|
801
2484
|
24"
|
84"
|
801
2496
|
24"
|
96"
|
801
24120
|
24"
|
120"
|
801
3072
|
30"
|
72"
|
801
3096
|
30"
|
96"
|
801
30120
|
30"
|
120"
|
801
3672
|
36"
|
72"
|
801
3696
|
36"
|
96"
|
801
36120
|
36"
|
120"
|
|
Beam Part
#
|
Demensions
|
Capacity
|
802
48
|
48"
x 3"
|
2200lb
|
802
72
|
72" x 3"
|
1800lb
|
802
96
|
96"
x 3"
|
1400lb
|
Steel Pannel Part
#
|
Depth
|
Width
|
805
18
|
16-1/4"
|
6"
|
805
24
|
22-1/4"
|
6"
|
805
30
|
28-1/4"
|
6"
|
805
36
|
34-1/4"
|
6"
|
Wire Deck Part
#
|
Depth
|
Width
|
804
18
|
16-1/4"
|
24"
|
804
24
|
22-1/4"
|
24"
|
804
30
|
28-1/4"
|
24"
|
804
36
|
34-1/4"
|
24"
|
|
Bar Supports For Wood Deck
Only
|
Support Part
#
|
Length
|
Thickness
|
807
24
|
24"
|
1"
|
807
30
|
30"
|
1"
|
807
36
|
36"
|
1"
|
|
Wood Deck Part
#
|
Depth
|
Length
|
808
1848
|
16-1/4"
|
47-1/2"
|
808
1872
|
16-1/4"
|
71-1/2"
|
808
1896
|
16-1/4"
|
95-1/2"
|
808
2448
|
22-1/4"
|
47-1/2"
|
808
2472
|
22-1/4"
|
71-1/2"
|
808
2496
|
22-1/4"
|
95-1/2"
|
808
3048
|
28-1/4"
|
47-1/2"
|
808
3072
|
28-1/4"
|
71-1/2"
|
808
3096
|
28-1/4"
|
95-1/2"
|
808
3648
|
34-1/4"
|
47-1/2"
|
808
3672
|
34-1/4"
|
71-1/2"
|
808
3696
|
34-1/4"
|
95-1/2"
|
|
|
