SYSTEM 200 BOLTLESS INDUSTRIAL SHELVING

logo3

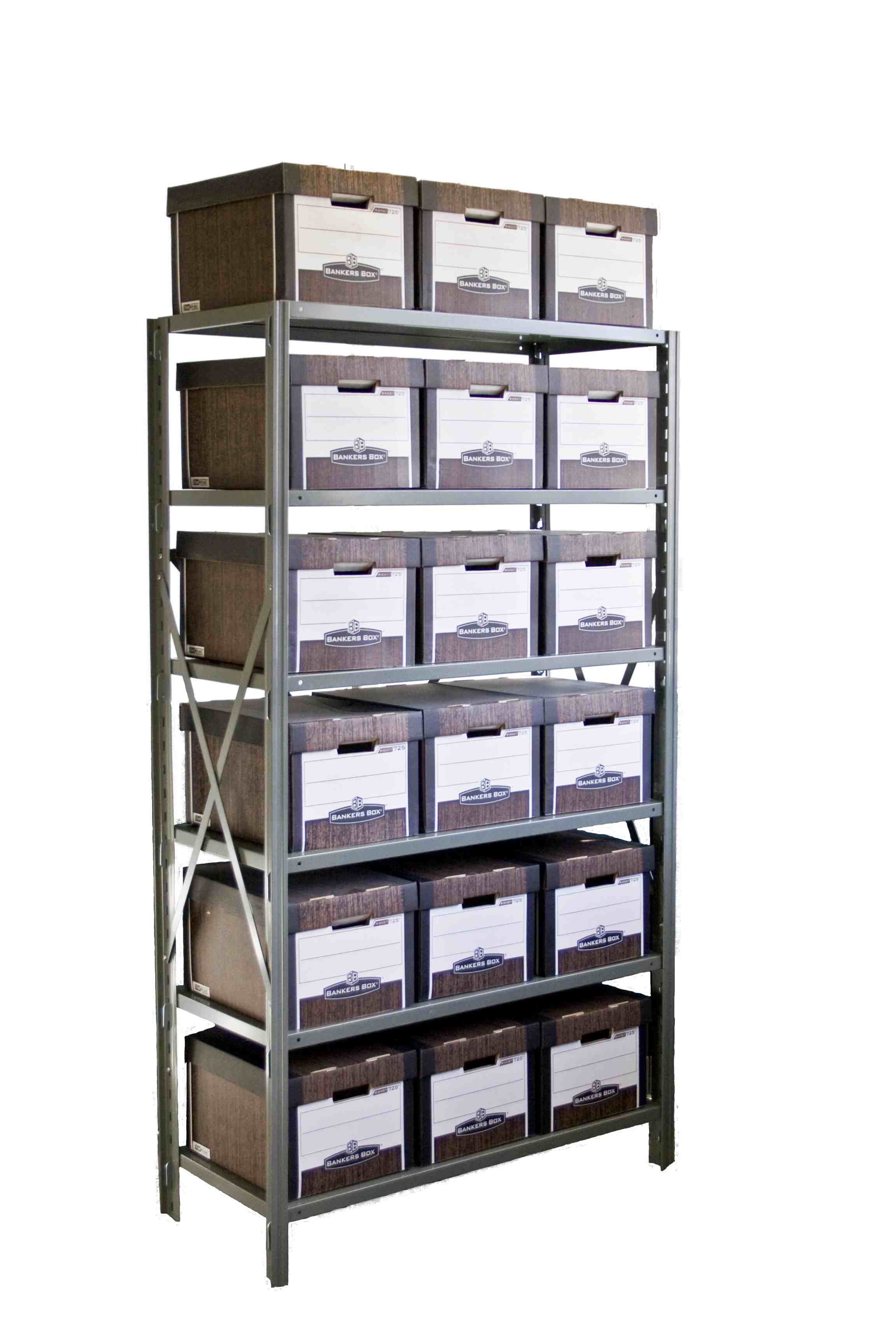

System 200 Boltless Industrial Shelving

Economically Priced heavy duty interlock Boltless industrial shelving. Designed for maximum strength and durability. Assembles in minutes without nuts and bolts. Compatible with Metalware No-Bolt Interlok Shelving.

Designed for maximum strength and durability
Assembles in minutes without nuts and bolts
Compatible with metalware no-bolt interlok shelving
Easily assembled in an upright position in less than one third of the time of bolted shelving
Shelf heights can be changed without dismantling the unit
Powder painted in a high quality olive gray

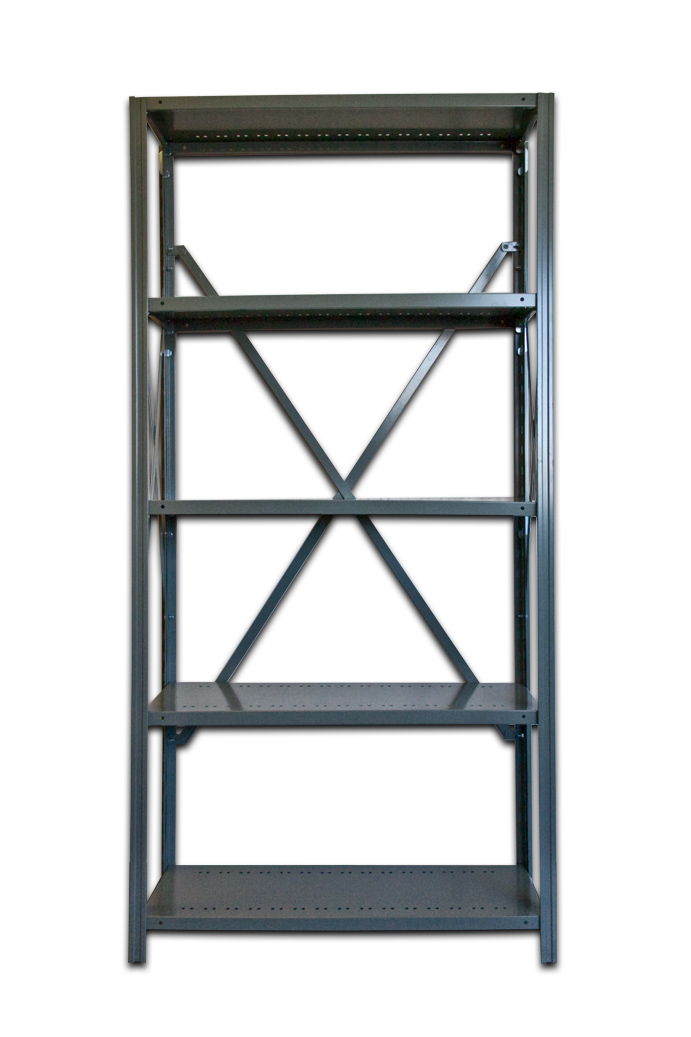

Standard unit contains 19 ga. steel shelves, 15 ga. steel T-posts, and side and back “X” bracing
In-stock

SHELVES: Formed with return bend on all bottom edges for increased strength and capacity. Manufactured in 19 ga. steel. Punched to allow installation of shelf dividers.

Dimensions	Part No.
12 x 36"	201 1236
12 x 42"	2011242
12 x 48"	201 1248
15 x 36"	201 1536
15 x 42"	201 1542
15 x 48"	201 1548
18 x 36"	201 1836
18 x 42"	201 1842
18 x 48"	201 1848
24 x 36"	201 2436
24 x 42"	201 2442
24 x 48"	201 2448
32 x 42"	201 3242

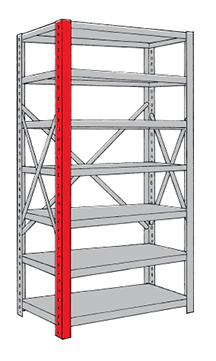

T Posts: Punched on 2” vertical increments to accept up to 2 standard shelf clips. Allows common posting between adjacent bays of shelving

Dimensions	Part No.
76"	205 76
88"	205 88
100"	205 100
124"	205 124

Side Brace: Bolted “X” bracing for side to maintain rigidity of unit. Braces sold in pairs

Dimensions	Part No.
37"	207 37
43"	207 43

Back Brace: Bolted “X” bracing for back to maintain rigidity of unit. Braces sold in pairs

Dimensions	Part No.
61"	208 61

Gussets: Use when access to both sides of unit is required. Use instead of, or in combination with braces

Part No.

200G

Shelf Clip: Standard compression shelf clip

Part No.

200SC

Back To Back Clip: To join rows of shelving together to make a double row.

Part No.

200BB

Foot Plate: Foot plates secures unit to floor or Mezzanines

Part No.

200FP
