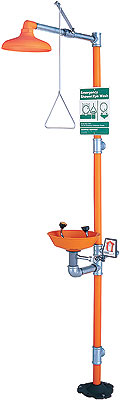

Eyewash Station & Shower

A combination eyewash and shower safety station. Two GS-Plus spray-type outlet heads deliver a flood of water for rinsing eyes.

• Shower Head: 25cm (10") diameter orange ABS plastic
• Shower Valve: 2.5cm (1") IPS chrome plated brass stay-open ball valve. Valve is made with chrome plated brass ball and Teflon® seals. Furnished with stainless steel actuating arm and 29" stainless steel pull rod
• Spray Head Assembly: Two GS-Plus spray heads. Each head has a "flip top" dust cover, internal flow control, and filter to remove impurities from the water
• Bowl: 29cm (11.5cm) ABS plastic or Bowl: 29cm (11.5cm) stainess steel
• Eyewash Valve: 1.25cm (0.5") IPS chrome plated brass stay-open ball valve. Valve is made with chrome plated brass ball and Teflon® seals
• Pipe and Fittings: Schedule 40 galvanized steel. Furnished with orange polyethylene covers for vertical piping for high visibility and corrosion resistance. Supply: 3cm (1.25") NPT female top or side inlet
• Waste: 3cm (1.25") NPT female outlet. Outlet tee can be positioned at either 20cm (8") or 50cm (20") above finished floor by reversing pipe nipples above and below lower tee
• Sign: ANSI-compliant identification sign

Available Individually
